Masonry Structural Steel Supplies
Reliable masonry ties, stiffeners and building accessories.
Noustruct supplies structural masonry hardware for builders, bricklayers, contractors and construction teams across Sydney and Australia.
Supply categories
Masonry Ties
Expansion ties, frame ties, veneer ties, stainless steel ties and cavity wall ties.
Stiffeners
Hot dipped galvanized stiffeners for lateral wall strength and stability.
Moisture Control
Dampcourse, Byute Flash, Sopramastic and standard weep holes.
Bricklaying Accessories
Brick clamps, galvanized brick mesh, concrete screws and expansion joint foam.
Product range
ET.001

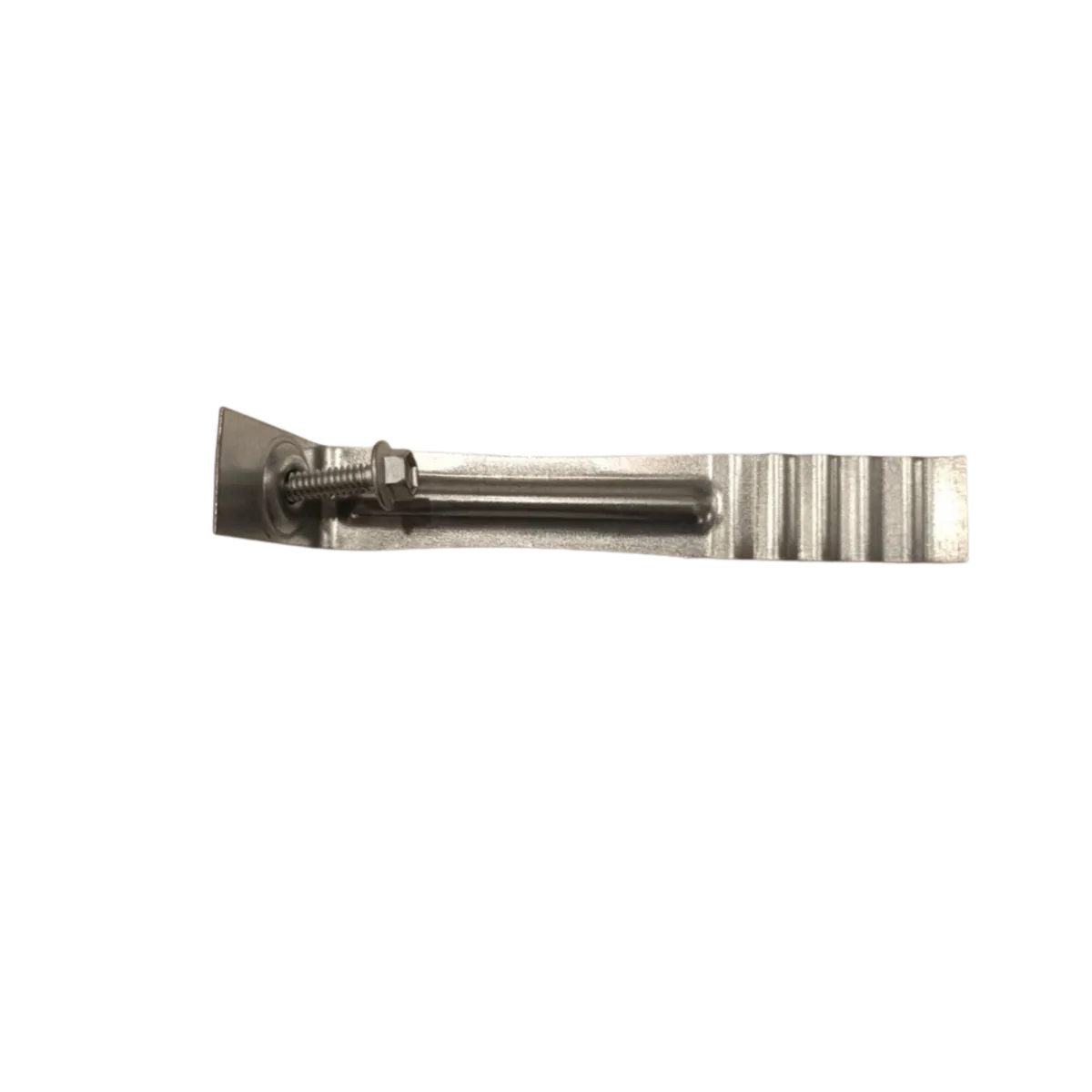

Expansion Tie 405
Retains masonry integrity against lateral wind load and absorbs differential movement.
405mm L x 50mm W x 25mm H x 1.5 thickness | Medium duty | AS 2699
ET.002
Expansion Tie 310
Light duty expansion tie for masonry movement and wind load applications.
310mm L x 50mm W x 25mm H | Light duty | AS 2699
FT.001

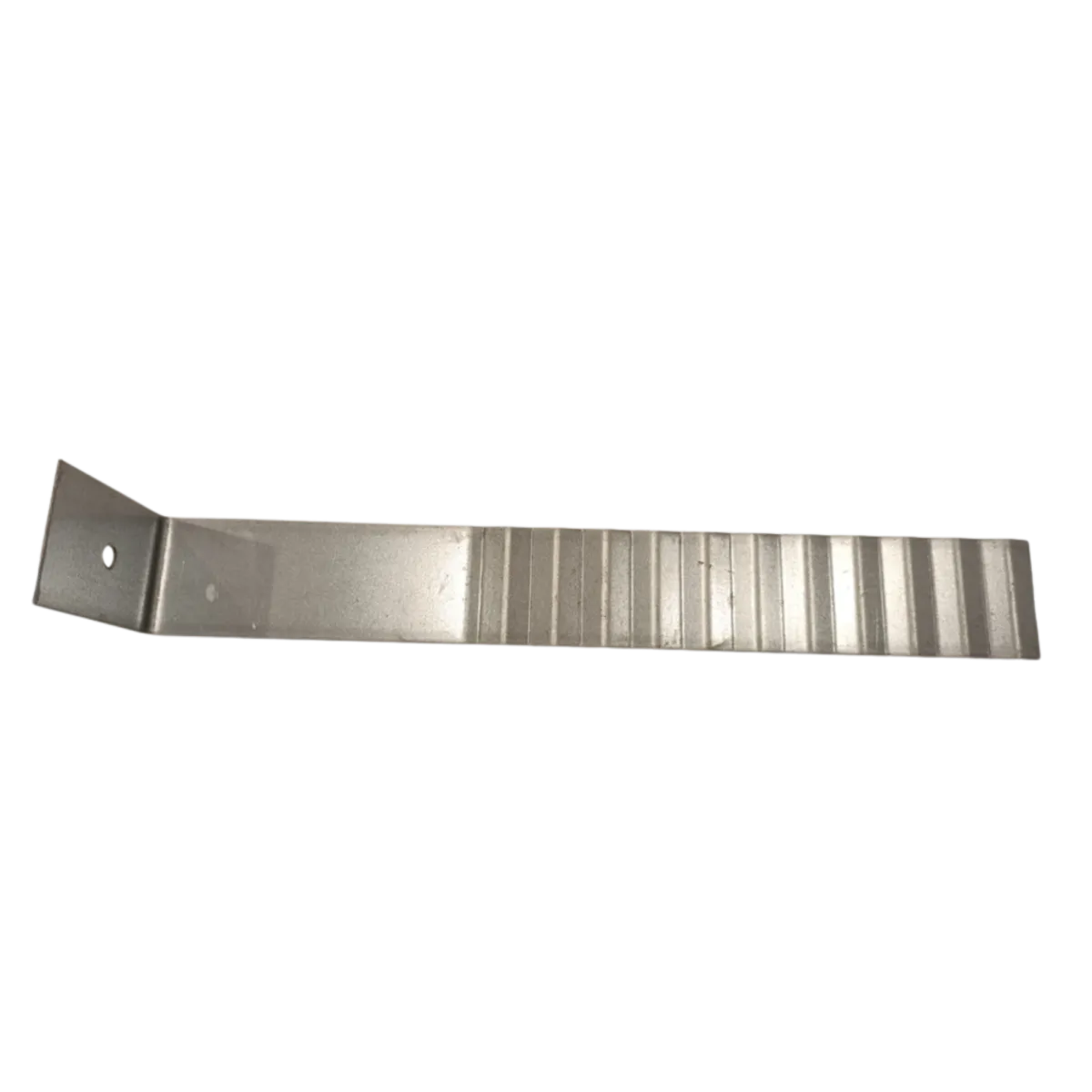

Frame Tie 350
Creates a secure connection between masonry walls and adjoining structural framework.
350mm L x 50mm W x 1.5 thickness | Light duty | AS 2699
FT.002

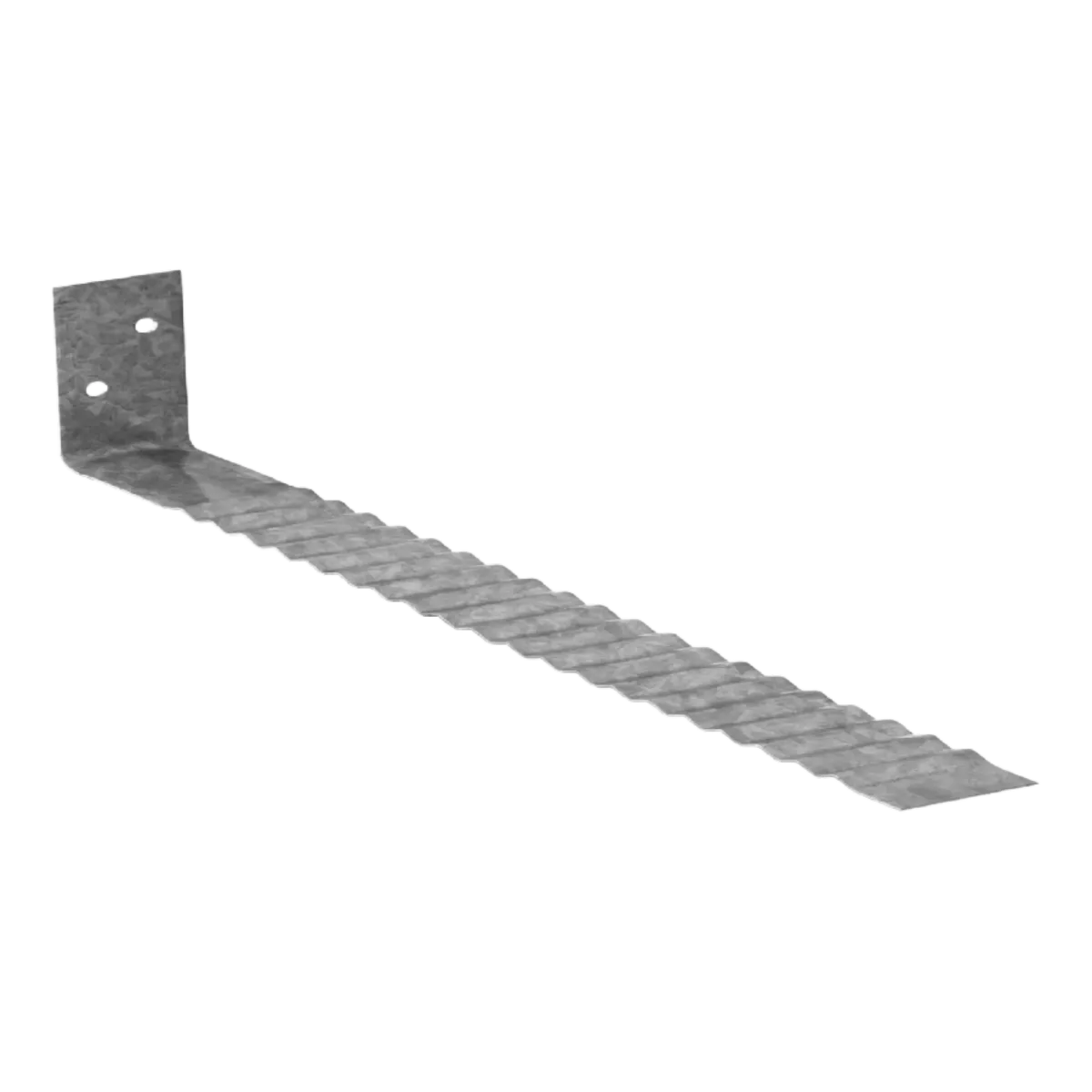

Frame Tie 200
Secure masonry to structural framework connection for building applications.
200mm L x 50mm W | Light duty | AS 2699
FT.003

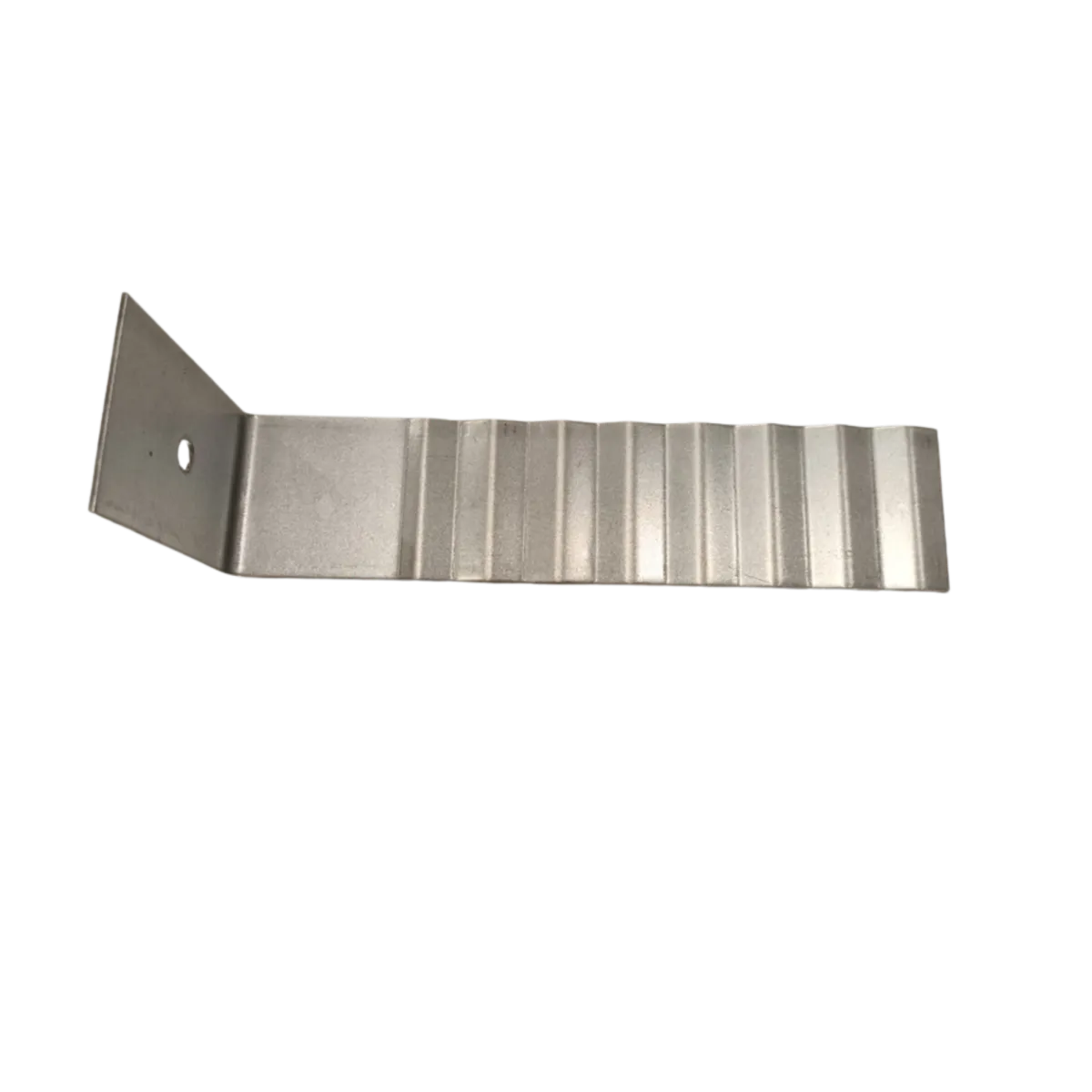

Frame Tie 235
Frame tie for secure masonry wall and adjoining structure fixing.
235mm L x 25mm W | Light duty | AS 2699
SST.001

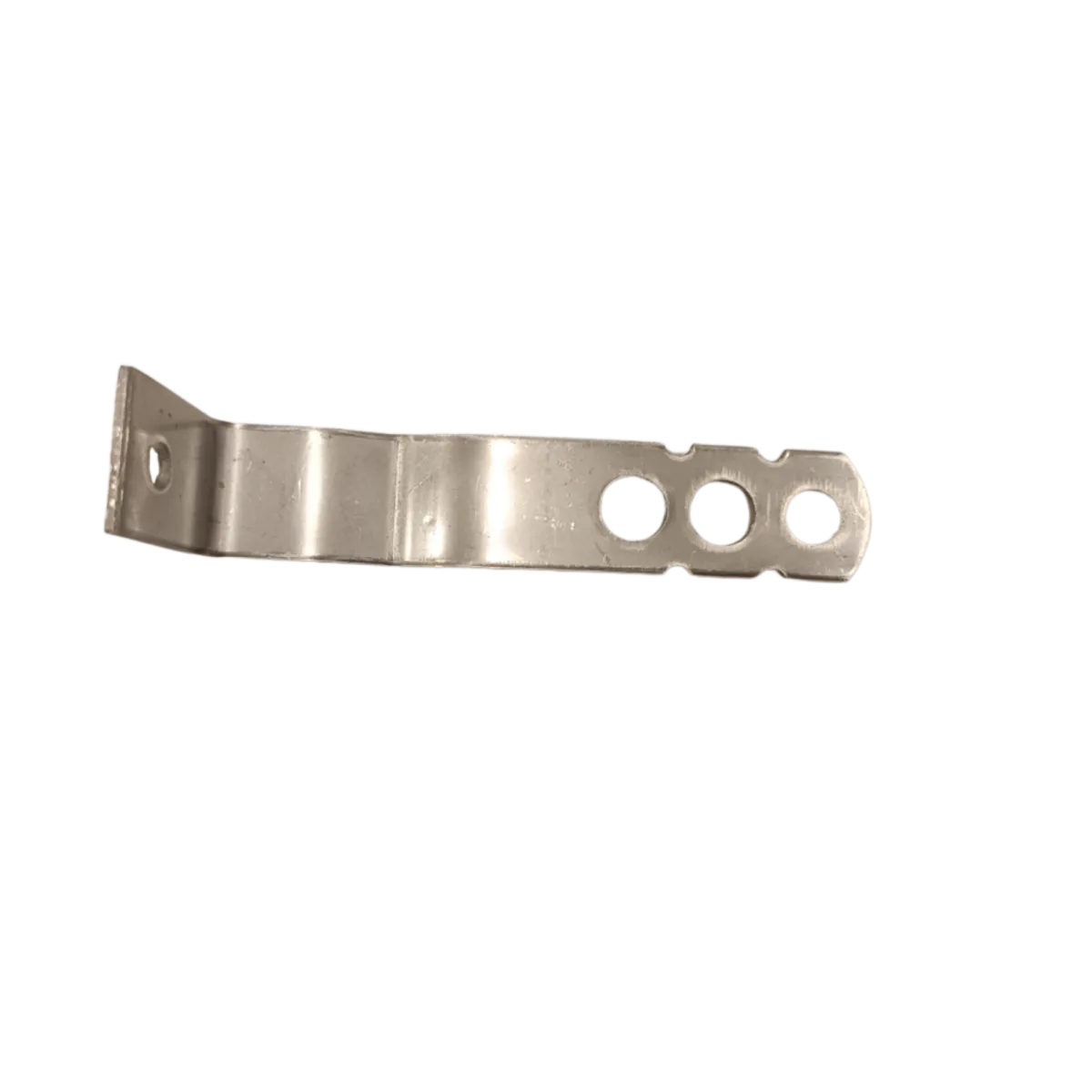

Stainless Steel Tie
Retains masonry integrity against lateral wind load and absorbs differential movement.
125mm L x 25mm W x 35mm H x 2.6mm thickness | Medium duty | AS 2699
VGT.001

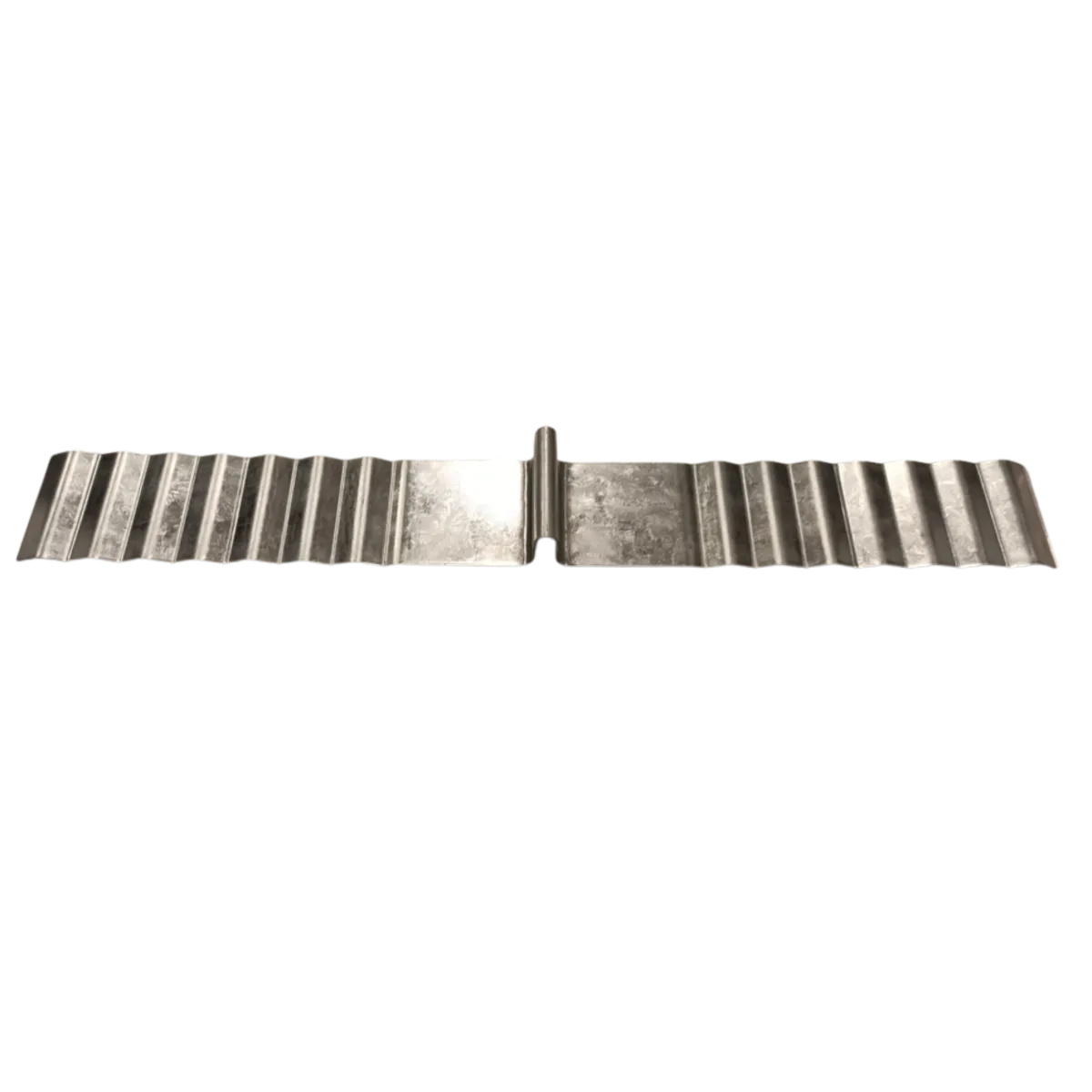

Vertical Control Gap Tie
Secures brick or block walls against lateral wind loads while allowing in plane movement.
150mm L x 150mm W | Light duty | AS 2699
VT.001
Veneer Tie
Face fix masonry tie for timber and metal frames with prefix screw.
120mm L x 20mm W x 35mm H x 0.8 thickness | Light duty | AS 2699
TVT.001

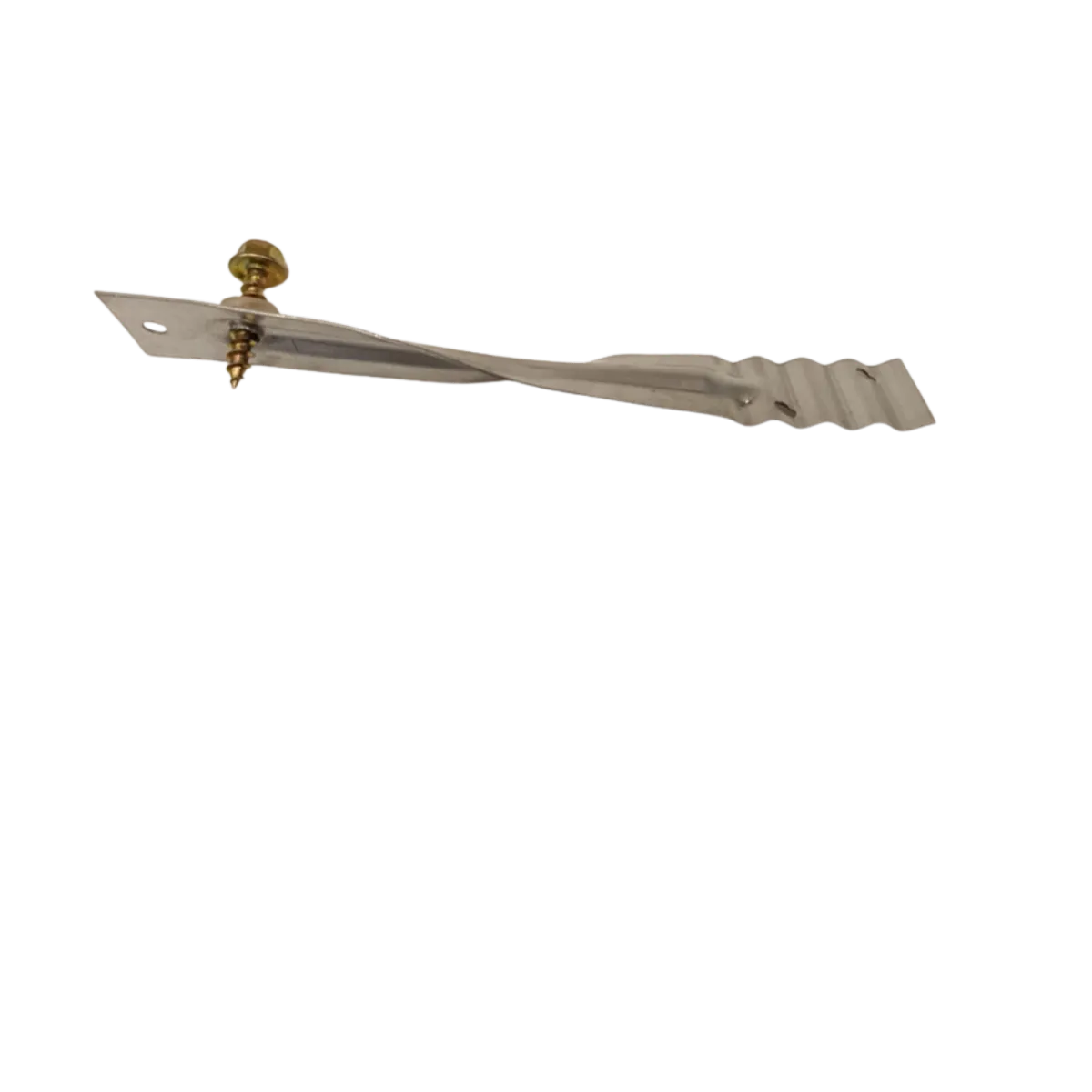

Twisted Veneer Tie
Side fix masonry tie for timber and metal frames with prefix screw.
145mm L x 23mm W x 0.7 thickness | Medium duty | AS 2699
S.001
Stiffener 85 x 85
Modern alternative to traditional wind posts for masonry wall stability.
85mm x 85mm x 0.5 thickness | Hot dipped galvanized | R3 | AS 2699
S.002
Stiffener 75 x 75
Increases lateral strength, stability and load bearing capacity of masonry walls.
75mm x 75mm x 0.5 thickness | Hot dipped galvanized | R3 | AS 2699
S.003
Stiffener 100 x 50
Side fix masonry tie for timber and metal frames with prefix screw.
100mm x 50mm x 0.5 thickness | Hot dipped galvanized | R3 | AS 2699
EF.001 / EF.002
Expansion Joint Foam
Closed cell adhesive foam jointing for creating expansion voids in movement joints.
100mm x 25m roll | 200mm x 25m roll
BC.001 / BC.002
Brick Clamps
Specialised masonry tools to securely hold a brick line against a wall for leveling.
200mm | 325mm
DC.001 / DC.002 / DC.003
Dampcourse
Stops rising damp from travelling through masonry to prevent damage, rot and mold growth.
350mm | 380mm | 450mm
BT.001
Galvanized Brick Mesh
Woven steel mesh for reinforcing brickwork and reducing cracking.
70mm x 46m
BF.001 / BF.002
Byute Flash
Self adhesive weatherproofing tape for watertight seals on roofs, gutters and downpipes.
50mm x 10m | 75mm x 10m
CWT.001 / CWT.002
Cavity Wall Tie
Reinforcement and connection for brick and block walls embedded in mortar.
125mm | 175mm
CS.001 / CS.002
Concrete Screw
Hex flange Xbolt screwbolt anchors for concrete, block, brick and stone.
6mm x 40mm box of 250 | 5mm x 30mm box of 200
SOP.001
Sopramastic
Solvent based SBS modified bitumen mastic for membranes, caulking and joint filling.
Jointing mastic | Caulking material | Joint filler
WEEPA.001
Standard Weep Holes
Ventilates face brick, blockwork and rendered walls to avoid mildew, decay and rising damp.
25 pieces per pack
